Working with Filter Logic

Fields are probably the most common component when building a Filter. Generally speaking, when you use a field as a component in your Filter, you first select the field, then select a mathematical operator. Lastly, you then either select or enter a value, or you select another field against which to compare. These two different methods are each described below.

Field Logic: Values

The Expression Toolbox displays every active field in the Filter's source table. Next to each field name is an icon representing the field's Data Type. The Data Type controls the possible operators and values that you can use when you add this field to your Filter.

Note: If the selected field has been defined with Field Restrictions, then the Filter screen will present you will a drop-down menu of valid values from which to pick. If the field was not defined with Field Restrictions, then you will have to type in the desired value (or values) to use in the Filter. See Tables for more information on Field Restrictions.

To build a component using a Field and a specified value (or values):

1. If necessary, click "Expression Toolbox" in the Dynamic Pane (this section is selected by default).

2. If necessary, click on "Fields" to expand it.

3. Drag the desired field from the Expression Toolbox, and drop it into the Workspace.

4. Select a mathematical operator from the drop-down menu. The mathematical operators available for selection vary depending on the Data Type of this field. For example, Date / Time fields have several unique operators related to "date math."

5. From the drop-down menu, select "value."

6. Select or enter a value. As mentioned above, some fields have a pre-defined set of valid values, so you can simply select the value you want from a drop-down menu. Other fields will present you with a text box, where you can enter a value. Also, depending on the mathematical operator you selected, you may need to provide additional information, as described in the samples below.

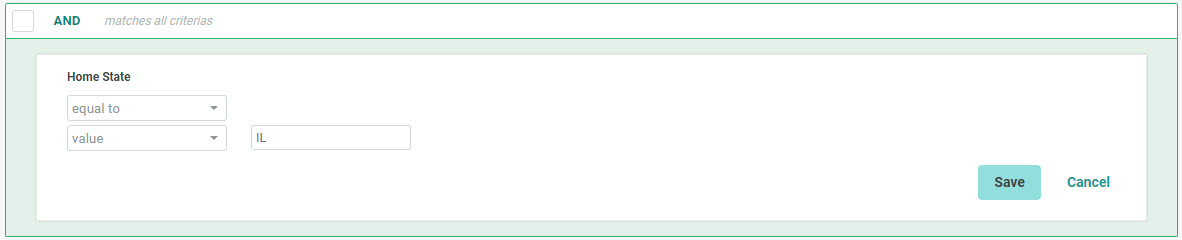

   • Equal to: Enter or select the full value to which the field must be equal.

Sample Filter - Value Equal toSample Filter - Value Equal to

• • Not equal to: Enter or select the full value to which the field must NOT be equal. Please note that this mathematical operator is not supported by the Quick Calculate feature.

Sample Filter - Value Not equal toSample Filter - Value Not equal to

• • More than: Enter or select the value to which the field must be greater than.

Sample Filter - Value More thanSample Filter - Value More than

• • More than or equal: Enter or select the value to which the field must be greater than, or equal.

Sample Filter - Value More than or equalSample Filter - Value More than or equal

• • Less than: Enter or select the value to which the field must be less than.

Sample Filter - Value Less thanSample Filter - Value Less than

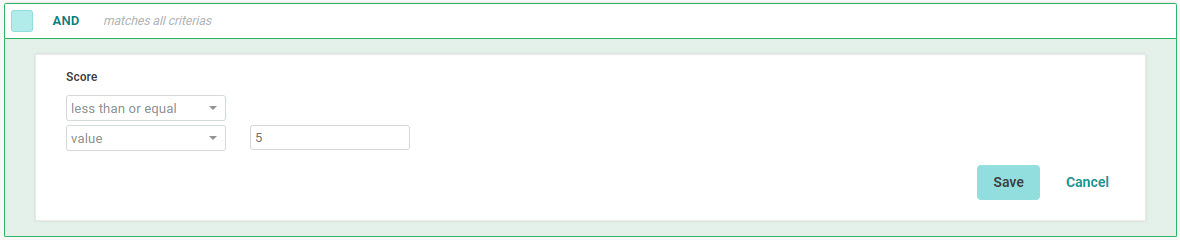

• • Less than or equal: Enter or select the value to which the field must be less than, or equal.

Sample Filter - Value Less than or equalSample Filter - Value Less than or equal

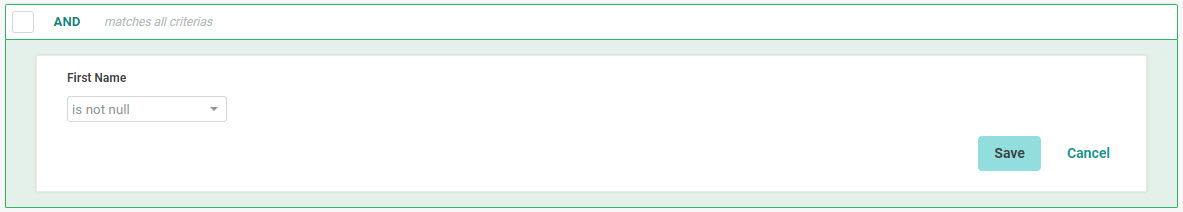

• • Is not null: No additional parameters are necessary.

Sample Filter - Value Is not nullSample Filter - Value Is not null

• • Contains: Enter a value which must be contained anywhere within this field.

Sample Filter - Value ContainsSample Filter - Value Contains

• • Starts with: Enter a value with which this field must start.

Sample Filter - Value Starts withSample Filter - Value Starts with

• • Starts with - Wild card: The "Starts with" operator also supports the use of an underscore ("_") as a wild card character, which allows you to target a specific value in a specific position.

Sample Filter - Value Starts with Wild CardSample Filter - Value Starts with Wild Card

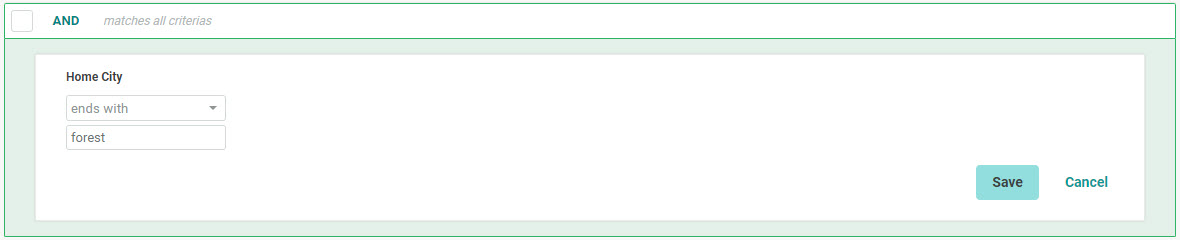

• • Ends with: Enter a value with which this field must end.

Sample Filter - Value Ends withSample Filter - Value Ends with

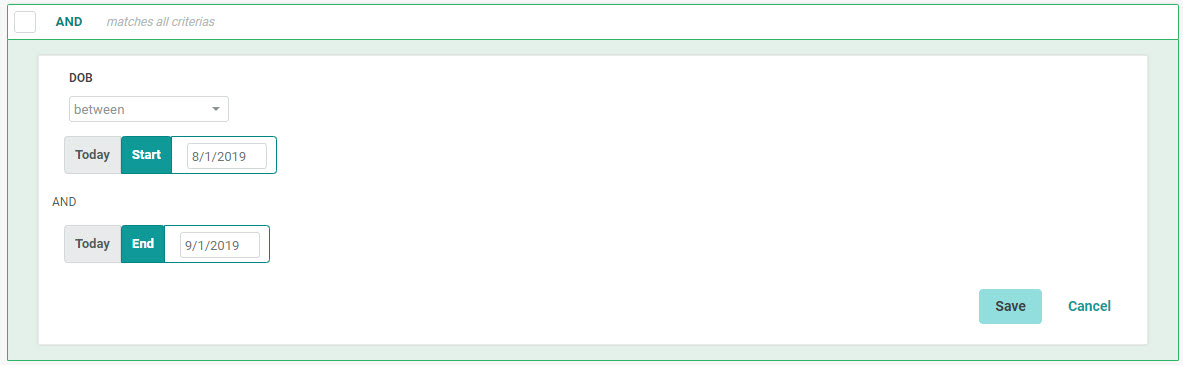

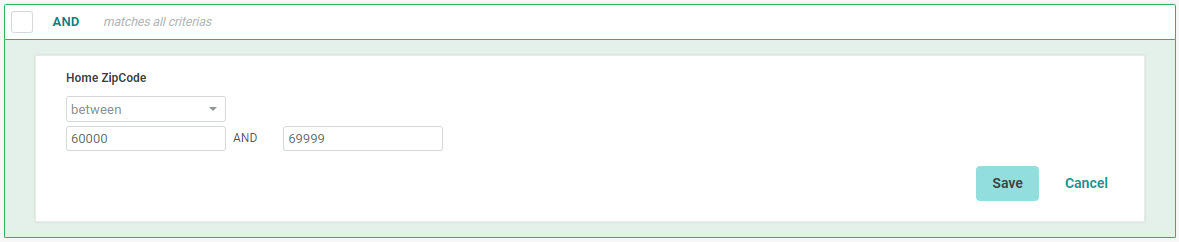

• • Between: Enter a start and an end value for the desired range.

Sample Filter - Value BetweenSample Filter - Value Between

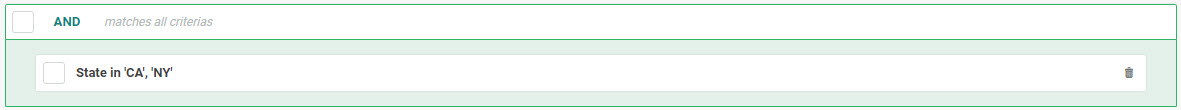

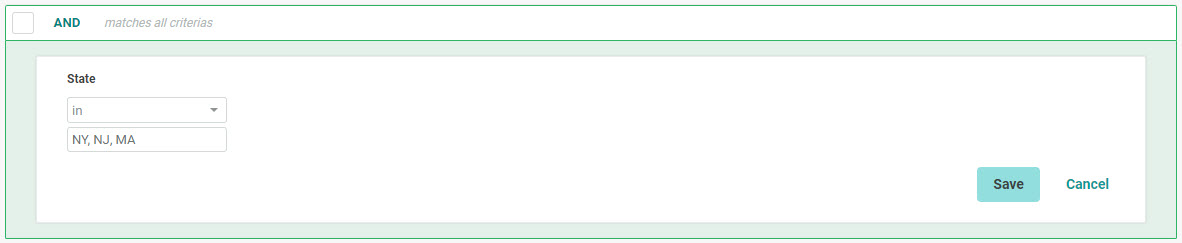

• • In: Enter a set of desired values, separated by commas.

Sample Filter - Value InSample Filter - Value In

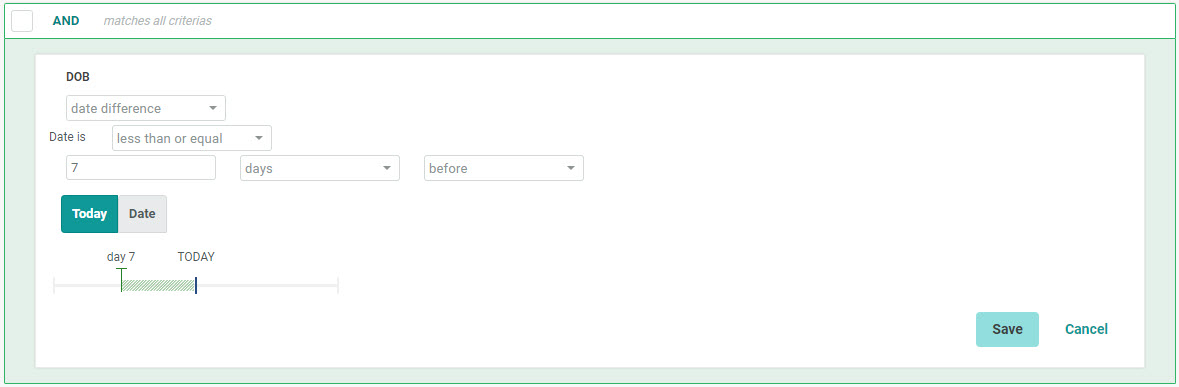

• • Date difference: Enter the parameters for how to calculate a dynamic date range.

Sample Filter - Value Date differenceSample Filter - Value Date difference

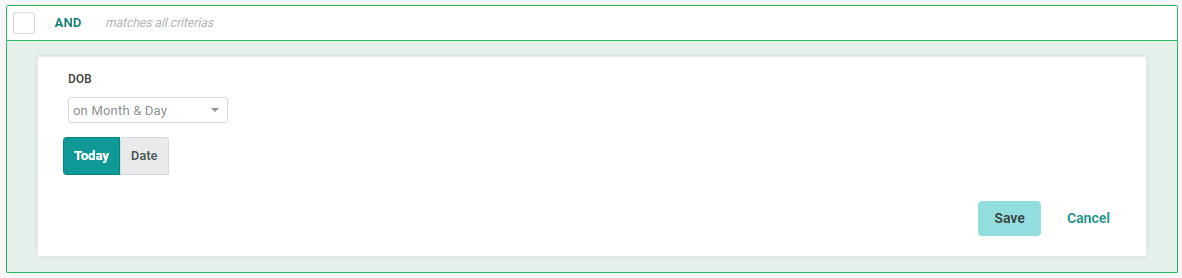

• • On month & day: Enter a specific date. Please note that this mathematical operator is not supported by the Quick Calculate feature.

Sample Filter - Value On month & daySample Filter - Value On month & day

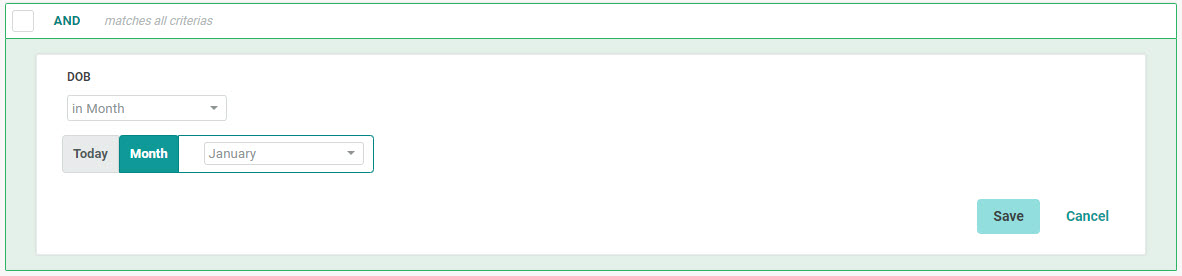

• • In month: Select the month in which the value in this Date field must be included. Please note that this mathematical operator is not supported by the Quick Calculate feature.

Sample Filter - Value In monthSample Filter - Value In month

7. When finished, click save to add this field to your Filter. Or, click cancel to remove this field.

Field Logic: Comparison

The Expression Toolbox displays every active field in the Filter's source table. Next to each field name is an icon representing the field's Data Type. The Data Type controls the possible operators and values that you can use when you add this field to your Filter.

To build a component using a Field and a comparison to another Field:

1. If necessary, click "Expression Toolbox" in the Dynamic Pane (this section is selected by default).

2. If necessary, click on "Fields" to expand it.

3. Drag the desired Field from the Expression Toolbox, and drop it into the Workspace.

Note: Only the following Data Types are supported if you intend to compare one Field against another Field -- String, Integer, Money / Decimal, Date / Time, Big Integer, and Long String. If you select a Field with another Data Type (Email, for example), then the application will not allow you to select a comparison Field.

4. Select a mathematical operator from the drop-down menu. The mathematical operators available for selection vary depending on the Data Type of this field. For example, Date / Time fields have several unique operators related to "date math."

Note: Only the following operators are supported if you intend to compare one Field against another Field -- "equal to," "not equal to," "more than," "more than or equal to," "less than," and "less than or equal to." If you select another operator (such as "is not null" for example), then the application will not allow you to select a comparison Field.

5. From the drop-down menu, select "field."

6. From the drop-down menu, select the Field against which you want to compare. This menu is populated with all of the Fields in the source table that have the same Data Type as the Field you selected in step 3. For example, you can only compare a Date / Time field against another Date / Time field, or an Integer field against another Integer field.

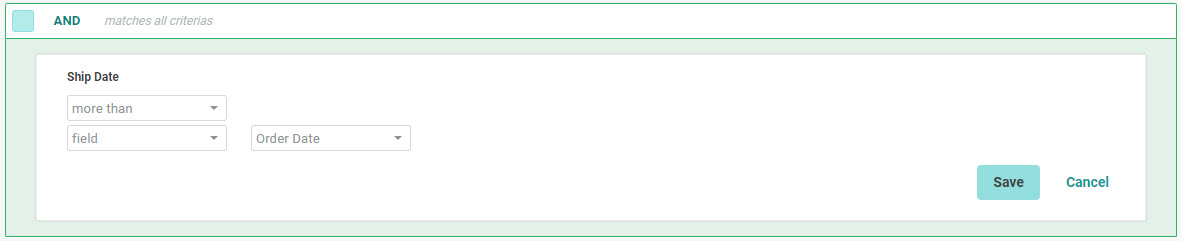

Sample Filter - ComparisonSample Filter - Comparison

7. When finished, click save to add this field to your Filter. Or, click cancel to remove this field.

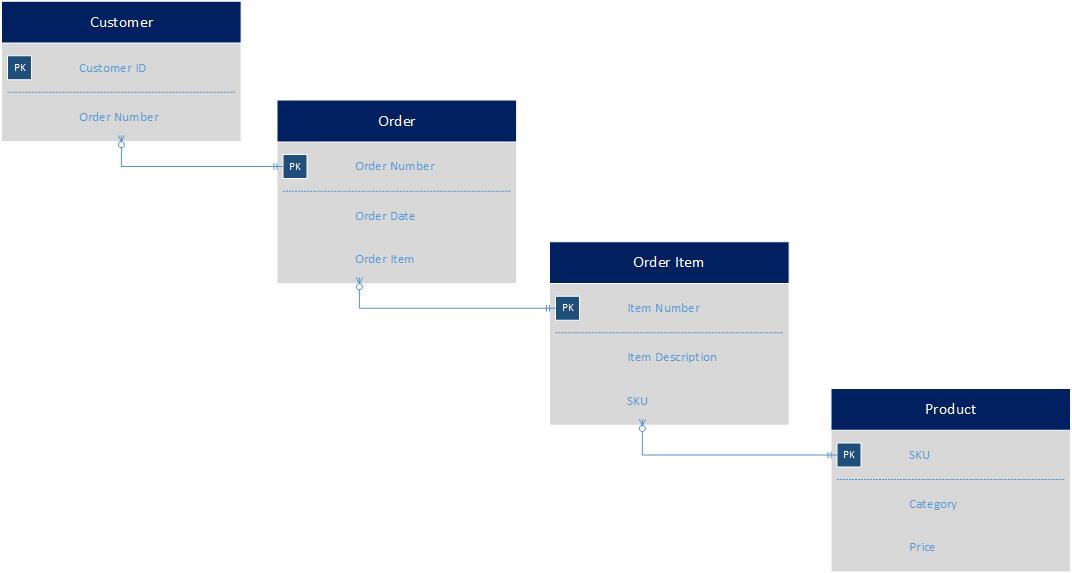

When your marketing database was initially configured, it was designed with various joins between the tables. For example, you might have a "Customer" table that joins to an "Order" table, which joins to an "Order Item" table, which joins to a "Product" table.



When building a Filter, you can use these existing joins (sometimes called "system joins") to pull in fields that aren't in your source table. For example, if your Filter is built using the "Customer" table, you could utilize the existing join to the "Order" table to create a rule that says, "Select every consumer who placed an order in the past six months."

To add a field from a joined table to your Filter:

1. If necessary, click "Expression Toolbox" in the Dynamic Pane (this section is selected by default).

2. If necessary, click on "Joins" to expand it. Beneath "Joins," the system displays a list of all the tables to which this Filter's source table is joined.

3. Drag the desired joined table from the Expression Toolbox, and drop it into the Workspace. The system adds the joined table to the Filter, and displays it with its own header bar.

Sample - Adding a Joined TableSample - Adding a Joined Table

4. At the bottom of the Expression Toolbox, the system adds a new section with the name of the joined table, followed by a list of all of the fields within this joined table. Drag the desired field, and drop it onto the header bar for the joined table in the Workspace.

Note: When adding a joined field, you must drop the field onto the header bar for the joined parent table within the Workspace; you can't simply drop the joined field anywhere. Conversely, you can't drop  fields from the source table onto the header bar for a joined table. Generally speaking, when you add fields to a Filter, you must drop them onto the correct header bar.

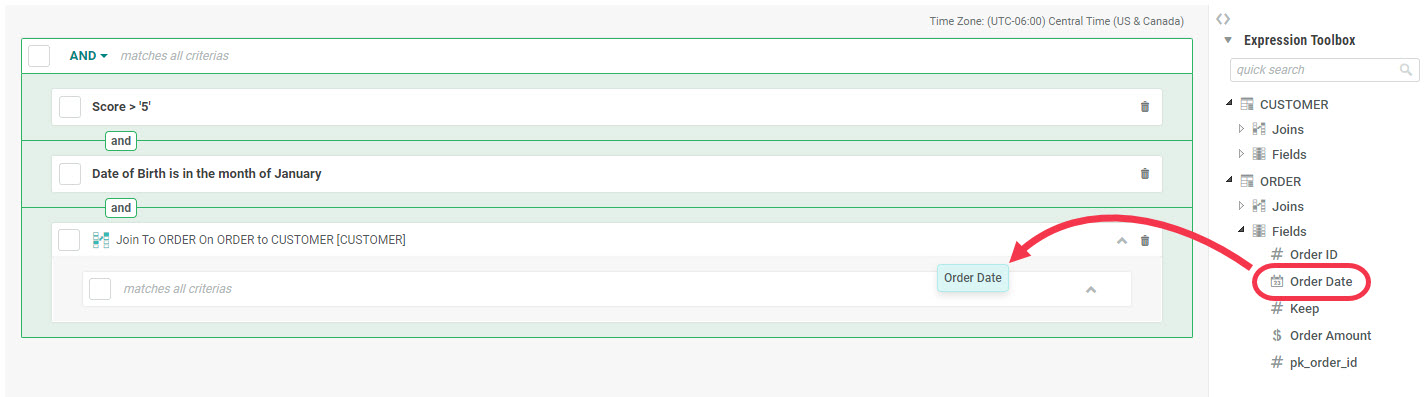

Sample - Adding a Joined FieldSample - Adding a Joined Field

5. From this point, configuring the Filter logic for the joined field works exactly the same as described above for working with a field on the source table. See the "Fields" section for more information on how to work with fields.



If you need to create a Filter using a field that's not in the source table, and that's not already joined to the source table, you must use the Property Joins feature. This feature allows you to create a join "on the fly" to another table, but only if both tables share the same field (for example, both fields have an "Email Address" field). When comparing the two joined tables, the system performs a byte-for-byte match on the selected "join field" in each table. For example, if you set up the join on an "Email Address" field, the system would look for an exact match on the Email Address value in the source table against the Email Address value in the joined table.

Note: Property Joins are supported by the Quick Calculate feature, but this functionality must be enabled in your account; please speak with your Client Services Representative for details.  Also, you can't use Property Joins if you're building a Filter off a Load and Send table.

To create a Property Join:

1. If necessary, click "Expression Toolbox" in the Dynamic Pane (this section is selected by default).

2. If necessary, click on "Joins" to expand it. Beneath "Joins," the system displays a list of all the tables to which this Filter's source table is joined.

3. Drag "Property Joins" from the Expression Toolbox, and drop it into the Workspace. The "Create a Property-to-Property Join" dialog box is displayed.

4. From the "Join Field" drop-down menu, select the field on the source table to which you'll be joining the other table.

5. From the "Join Type" drop-down menu, select the join method -- either "In" or "Not In." If you select "In," then the Filter will return all records where there's a match between the two tables on the joined field. If you select "Not in," then the Filter will return all records where there's NOT a match between the two tables.

6. From the "Table to Join" drop-down menu, select the table to which you're creating the Property Join.

7. From the "Field to Join" drop-down menu, select the field on the joined table that you're using to create the Property Join. This field should contain the same information as what you selected for "Join Field" above.

8. Click add join. The system adds the newly joined table to the Filter, and displays it with its own header bar.

9. At the bottom of the Expression Toolbox, the system adds a new section with the name of the joined table, followed by a list of all of the fields within this joined table. Drag the desired field, and drop it onto the header bar for the joined table in the Workspace.

Note: When adding a joined field, you must drop the field onto the header bar for the joined parent table within the Workspace; you can't simply drop the joined field anywhere. Conversely, you can't drop  fields from the source table onto the header bar for a joined table. Generally speaking, when you add fields to a Filter, you must drop them onto the correct header bar.

10. From this point, configuring the Filter logic for fields within the Property Join works exactly the same as described above for working with a field on the source table. See the Fields section for more information on how to work with fields.



When you add a System Join to a Filter, the platform allows you to perform a mathematical operation, such as a sum or a count, on a field in the joined table.

Note: Aggregate Counts are not supported by the Quick Calculate feature. Also, you can't use Aggregations if you're building a Filter off a Load and Send table.

To define an aggregate count:

1. Add a System Join to your Filter as described above.

2. Click the check mark next to the header bar for the System Join.

3. In the Tool Ribbon, click Expression > Aggregate > Toggle. The system expands the Join's header bar.

4. From the "Select a Function" drop-down menu, select the desired mathematical operation -- Sum, Count, Average, Minimum, or Maximum.

5. Select a mathematical operator from the drop-down menu.

6. From the "Select a Field" drop-down menu, select the desired field on the joined table.

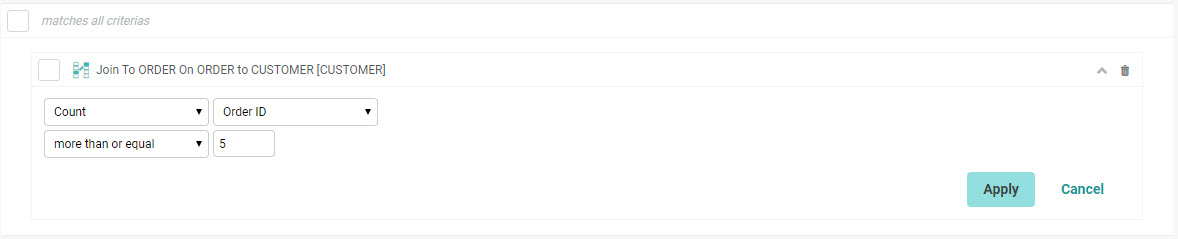

Sample - Defining an Aggregation Sample - Defining an Aggregation

6. Enter a value.

7. When finished, click apply. Or, click cancel to remove this Filter criteria.

The platform allows you to sort the records in your Filter result set, then select a specified quantity of records off the "top" of that sorted result set. This feature is useful if you want to create a Filter of a specific size, or if you want to pick the top records based on a certain field, such as a Score, or Purchase Amount, for example.

Note: The Top & Sort function is not supported by the Quick Calculate feature. Also, you can't use the Top & Sort feature if you're building a Filter off a Load and Send table.

To define a sort order and to select a specified quantity of records:

1. Click the check mark next to the desired header bar (NOT next to an individual condition) to select it. You can check the top-level header bar; or, if you've added a System Join or a Property Join to the Filter, you can click the header bar for the Join.

2. In the Tool Ribbon, click Expression > Top & Sort > Toggle. The system expands the header bar.

3. In the "Top" field, enter the desired record quantity that you want this Filter to select.

4. Optionally, from the "Order by" drop-down menu, select the field by which you want to sort, and select the sort order (either "Ascending" or "Descending"). If you don't specify a field on which to sort, the system will default to sorting the records by Primary Key ID (pk_id), which is essentially sorting the records by the date they were added to the database. By not selecting a sort order, you can create a close equivalent to a random selection.

Sample - Defining a Sort Order Sample - Defining a Sort Order

5. When finished, click apply. Or, click cancel to remove this Filter criteria.

Activities are events that are recorded in the database and that can be used in your Filters. These activities include both system-generated events (such as a "File Import") and user-generated events (such as "Link Clicks").

The list of available activities is displayed within the Expression Toolbox in the "Activities & Items" section.

Note: You can't use Activities and Items if you're building a Filter off a Load and Send table.

To add an activity to your Filter:

1. In the Dynamic Pane, click "Activities and Items." The system displays a list of all the available activities.

2. Drag the desired activity from the Dynamic Pane, and drop it into the Workspace.

3. A "Build Criteria" dialog box is displayed. This dialog box displays the options specific to the type of activity that you selected. For most activity types, you can build multiple criteria options, each of which will be displayed as a tab within the dialog box. For more details on the criteria options available for each activity type, see the Help topic Filter Options for an Activity.

4. Optionally, enter a name for this activity Filter criteria in the "Filter Name" field at the bottom of the dialog box.

5. Click save criteria. The system adds the Activity criteria to the Filter.

6. From this point, configuring the Filter logic for an activity works the same as described above for working with a field on the source table. For example, you can join the activity criteria to other criteria using logical operators, add the activity criteria to a group, etc.

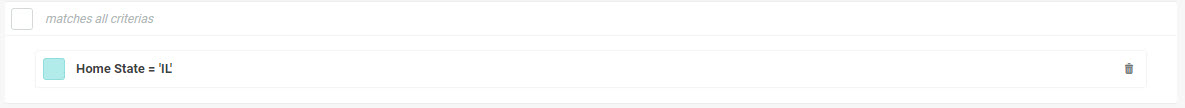

If your Filter has only one rule, then the system simply finds all the records that match that rule.

Sample Filter - one ruleSample Filter - one rule

As soon as you add a second rule, then you need to define the logical relationship between the rules -- either AND (meaning, the record must match all criteria) or OR ( meaning, the record must match at least one of the criteria). In most cases, an OR operator is more inclusive, and will result in more records being selected.

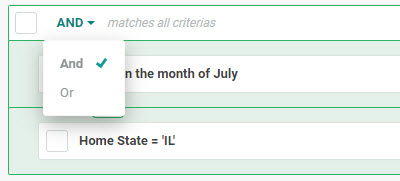

By default, the platform uses an AND operator. To switch to using OR instead, click the "AND" operator, and select "OR" from the drop-down menu.

Sample Filter - AND operatorSample Filter - AND operator

Sample Filter - OR operatorSample Filter - OR operator

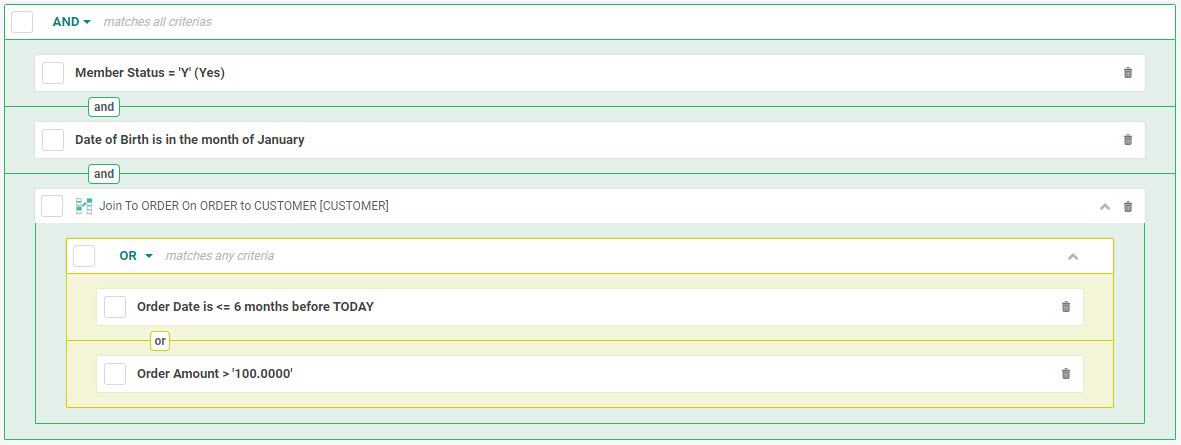

If your Filter utilizes a joined table, the system adds a separate header bar for this table. All fields that you add from this joined table will appear beneath this header bar. If you add multiple joined fields from the same table, you can define a logical operator that applies to these joined fields, independently from the rest of the Filter logic.

Sample Filter - joined tableSample Filter - joined table

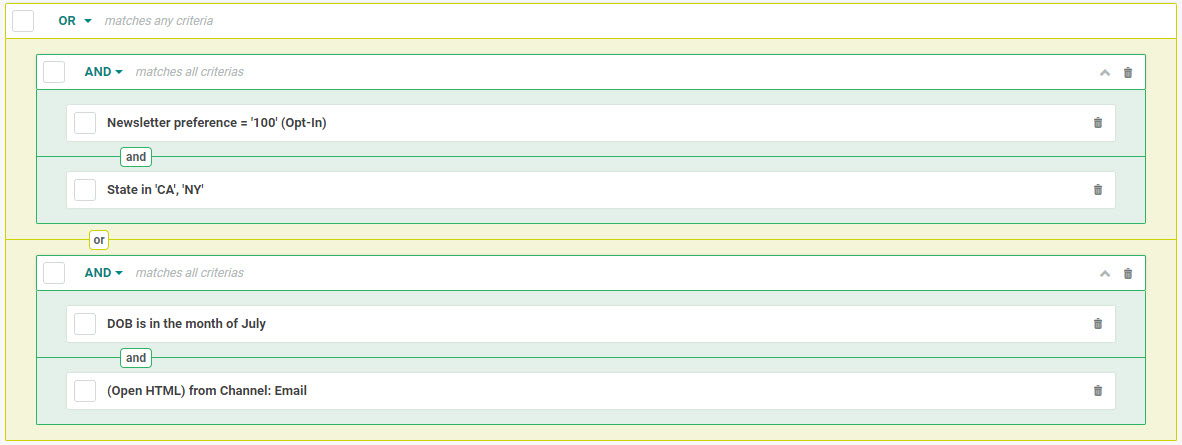

Filter rules can be grouped together to create more complex logical structures using combinations of AND and OR operators. To group two or more rules together:

1. Click the check marks next to each rule.

2. Click Expression > Group. The system will indent the selected rules, and put them inside their own box with their own header bar. You can now set a logical operator within that group, as well as across groups.

Sample Filter - GroupSample Filter - Group

To pull a rule (or rules) out of an existing group:

1. Check the check mark next to the rule.

2. Click Expression > Ungroup in the Tool Ribbon. To eliminate a group completely, check all of the rules in the group, then click Expression > Ungroup in the Tool Ribbon.



By default, a Filter will include all of the records that match the criteria and business rules defined within each component of the Filter. In some cases, though, you might want to exclude records that match a Filter component. The system allows you to toggle the component's definition from "include" to "exclude. " For example, let's say you want to select all individuals except those who live in California. You could define the Filter by listing out the other 49 states that you want included. However, it might be simpler to define the Filter as "exclude California."

Note: The "exclude" command is not supported by the Quick Calculate feature.

To toggle a component from "include" to "exclude:"

1. Click the check mark next to each desired component.

2. In the Tool Ribbon, click Expression >  Toggle. The system changes the logic to "exclude" for each selected component. The component is highlighted in red, with a label "excluded."



Filters always execute from the top down, meaning the rule that appears at the top of your Workspace will run first, followed by the next rule, and so on. Filter components can be rearranged into a different sequence in order to change the sequence in which the Filter executes. In most cases, you want the Filter component that's most likely to eliminate the most records to run first, in order to improve the Filter's efficiency. For example, if you had a Filter consisting of "find all females in Illinois," your Filter would contain two components ("Gender = Female" and "State = IL"). You would want the State component to run first, as this rule will eliminate more records than the Gender component will.

To re-order the sequence of Filter components:

1. In the Tool Ribbon, click Edit Filter Logic > Re-Order. The system toggles on Re-order Mode. A small "handle" icon is displayed to the left of each Filter component.

2. Click on a component, and drag it either up or down to move it to a new location. Repeat this step as needed to rearrange other Filter components.

3. When you're finished, click Edit Filter Logic > Re-Order again to toggle off Re-order Mode.



To remove a component from your Filter:

1. Click the trash can icon to the right of the Filter component that you need to delete. The Filter component is grayed-out to indicate that it's been marked for deletion.

2. In the Tool Ribbon, click Save.

3. The selected component is removed from the screen.

Note: Prior to saving, you can always restore a removed Filter component by clicking the restore icon to the right of the Filter component.
